1280X104 Modul Waspal Wéb sareng 25 ~ 225mm (30 ~ 150mm) Lenes motorisasi
|
Model |
Sg - tcm12N2 -M25225 |
Sg - tcm12N2 -M30150 |
|
|
Sensikat |
Sensor gambar |
Microol Micox |
|
|
Resolusi |
1280 × 1024 |
||
|
Tingkat pigura |
50Hz |
||
|
Puncak piksel |
12μm |
||
|
Rentang spéktral |
8 ~ 14μm |
||
|
Jard |
≤35MK @ 25 ° C, f # 1.0 |
||
|
Lénsa |
Palapis |
Dlc |
|
|
Panjang fokus |
25 ~ 225mm |
30 ~ 150mm |
|
|
Jinis lénsa |
Disodok |
Disodok |
|
|
Zoom Optik |
9x |
5x |
|
|
Zoom Zoom |
8x |
8x |
|
|
F |
F1.0 ~ F1.5 |
F1.0 ~ F1.2 |
|
|
Fov |
34.15 ° × 27,61 ° ~ 3.91 ° × 3.13 ° |
28.72 ° × 23.15 ° ~ 5.86 ° × 4,69 ° |
|
|
Liwat saurang |
Komprisi |
H.265 / H.264 / H.264h / H.264b / Mjpeg |
|
|
Komprési audio |
Aac / Mp2l2 |
||
|
Snapshot |
Jpeg |
||
|
Resolusi |
Aliran utama: 50fps @ (1280 × 1024, 1280 × 720, 704 × 504 × 480 × 480 × 480 × 480 × 480 × 480 × 480. |
||
|
Ditunjuk pidéo |
4kbps ~ 40mbps |
||
|
Aralkeun |
Protokol jaringan |
IPv4, IP UP, httpP, HTTPS, TCP, UDP, pasisop, PPMP, FPS, BRMP, DTPS, RTMP |
|
|
Api |
Onvif, HTTP API, SDK, GB28181 |
||
|
Kaamanan |
Obéntikasi pangguna, ip / seraring anu disaring, enkripsi https, IEEE 802.1x |
||
|
Browser wéb |
Ie, tepi, Firefox, Chrome |
||
|
Pangguna |
Nepi ka 20 pangguna, 2 tingkat: Administrator, pangguna |
||
|
Neundeun |
Kartu SD / SDHC / SDXC (dugi ka 1TB) neundeun ujung, FTP, NAS |
||
|
Anesir |
Dukungan |
||
|
Intelijen |
Perlindungan perimeter |
Tripwire, deteksi pager cross, intrusi |
|
|
Analisis kabiasaan |
Objék anu ditinggalkeun, Objék Dibagi, gancang - gerak, deteksi riungan, deteksi |
||
|
Acara |
Deteksi gerak, intervelon video, pamandangan parobahan, deteksi audio, jaringan anu ditetepkeun, konflik Cak Bumi |
||
|
Deteksi seuneu |
Dukungan |
||
|
Intervarface |
Ethernet |
4PIN Ethrovetch Ethernet, 10m / 100m diri - Adaption |
|
|
Alarm di / kaluar |
1/1 |
||
|
Audio dina / kaluar |
1/1 |
||
|
Antarmuka kontrol |
1x Ttl 3.3v (Propokol Visca), 1x Rs485 (Pelco Protocol) (TTL 3.3v opsional) |
||
|
Fungsi output video |
Aralkeun |
||
|
Warna pseudo |
Hot panas, panas hideung, fusion, beusi beureum, sareng sajaba 20 pilihan |
||
|
Modeu Pusun |
Otomatis / manual / salah sahiji pit |
||
|
Modeu FFC |
Otomatis / Manual |
||
|
Setting gambar |
Tangan, kontras, seukeutna, sareng panur sora samentawis |
||
|
Éf |
Dukungan |
||
|
OsD |
Dukungan |
||
|
Fland |
Dukungan |
||
|
Eunteung |
Dukungan |
||
|
Sasayogian tanaga |
DC 12V, 1A |
||
|
Konsumsi kakuatan has |
3.8w |
||
|
Pengulasi Power |
7.5w |
7.3w |
|
|
Kaayaan operasi |
- 30 ° C ~ + 60 ° C / 20% ka 80% rh |
||
|
Kaayaan panyimpen |
- 40 ° C ~ + 70 ° C / 20% ka 95% rh |
||
|
Tingkat panyalindungan lensa 1st |
Ip67 |
||
|

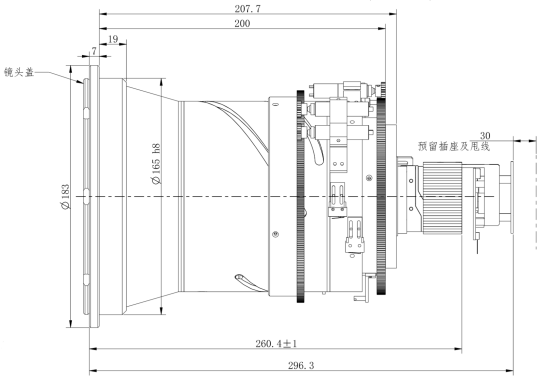

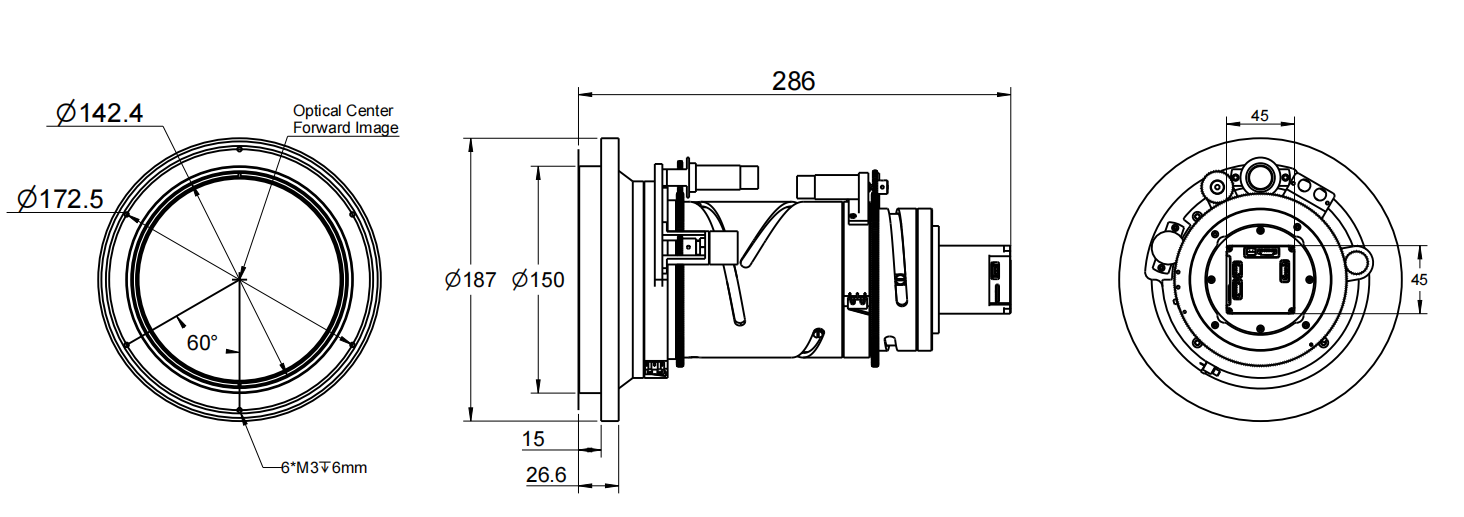

Dimensi (l * w * h) |
Φ195 * 321mm |
Φ187 * 286 (mm) |
|
|
Beurat |
Perkiraan. 5kg |
Perkiraan. 4.6kg |
|
Jarakna
Targét: Ukuran manusa nyaéta 1.8M × 0. 0.5m (Ukuran Kritis nyaéta 0.75m), ukuran kendaraan mangrupikeun 1.4M × 4,0m); Ukuran seuneu mangrupikeun 0.13m × 0.13m (ukuran kritis 0,13m).
Detkusi tarapan, pangakuan sareng jarak sareng jarak idisftif diitung numutkeun kriteria Johnson.
Jarak anu disarankeun deteksi, pangakuan sareng idéntifikasi sapertos kieu:
|
Lénsa |
Dédék |
Répadigei |
Idéntify |
||||||
|
Kendaraan |
Manusa |
Seuneu |
Kendaraan |
Manusa |
Seuneu |
Kendaraan |
Manusa |
Seuneu |
|
|
30mm |
3833m (12575ft) |
1250m (4101ft) |
217m (712ft) |
958m (3143ft) |
313m (1027ft) |
54m (177ft) |
479m (1572ft) |
156m (512ft) |
27m (89ft) |
|
150mm |
19167m (62884ft) |
6250m (20505ft) |
1083m (3553ft) |
4792m (1572ft) |
1563m (5128ft) |
271m (899ft) |
2396m (7861ft) |
781m (2,562ft) |
135m (443ft) |
|
225mm |
28750m (94324ft) |
9375m (30758ft) |
1625m (5331ft) |
7188m (23583ft) |
2344m (7690ft) |
406m (1332ft) |
3594m (11791ft) |
1172m (3845ft) |
203m (666ft) |
