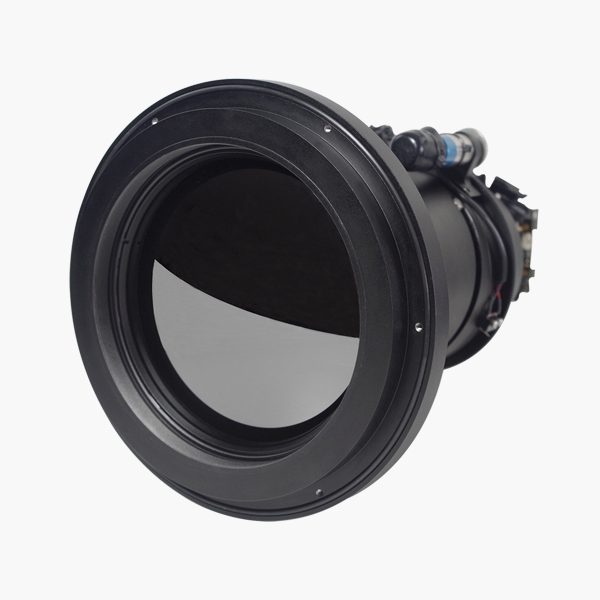

1280x1034 Modul Waspada Wake sareng 30 ~ 150mm (25 ~ 22mm) Lenes motorisasi
Model | SG - tcm12n2 - m25225 | SG - TCM12N2 - M30150 | |
Sensikat | Sensor gambar | Microol Micox | |
| Resolusi | 1280 x 1024 | ||
| Ukuran piksel | 12μm | ||
| Rentang spéktral | 8 ~ 14μm | ||
| Jard | ≤50MK @ 25℃, F # 1.0 | ||
Lénsa | Panjang fokus | 25 ~ 225mm motor | 30 ~ 150mm motor |
| Zoom Optik | 9x | 5x | |
| Zoom Zoom | 4x | 4x | |
| F | F1.0 ~ f1.5 | F1.0 ~ F1.2 | |
| Fov | 34.2 ° X27.6 ° ~ 3.9 ° X3.1 ° | 28.7 ° X23.1 ° ~ 5.9 ° X4.7 ° | |
Liwat saurang | Komprisi | H.265 / H.264 / H.264h | |
| Snapshot | Jpeg | ||
| Warna pseudo | Dukungan: panas panas, panas, beusi beureum, cangkih 1, fittar, katelangan 2, fusion, ruangan, arcci | ||
| Aliran | Main Stream: 25fps@(1280×1024)Sub Stream: 25fps@(640×512), 25fps@(352×288) | ||
Aralkeun | Protokol jaringan | IPv4 / IP8, HTTP, HTTPS, QOT, FTT, STP, DNP, PPPP, FTPP, VSPP, VSPP, tanggal IP, TCPP, PPPP, VHP, UdP, VHP, UdP, VHP, UdP, VHP, UdP, PPPP, VHPP, PPPP, PPPP, VHPP, PPPP, VSPP, tanggal ID | |
| Interoperability | Propil Onvif s, buka API, SDK | ||
| Max. Sambungan | 20 | ||
Intelijen | Acara normal | Deteksi gerak, deteksi audio, alamat IP IP, aksés hukum, neundeun anomali | |
| Fungsi ivs | Ngadukung fungsi cerdas:Trerwewire,Deteksi pager, intrusi, Deteksi loiter. | ||
| Deteksi seuneu | Dukungan | ||
| Intervarface | Ethernet | 4PIN Ethrovetch Ethernet, 10m / 100m diri - Adaption | |
| Alarm di / kaluar | 1/1 | ||
| Rs485 | Dukungan | ||
| Resolusi | 50hz: 25FPS @ (1280 × 1024) | ||
| Kamampuan panyimpenan | Kartu SD SD, dugi ka 256g | ||
| Sasayogian tanaga | DC 9 ~ 12V (nyarankeun: 12V) | ||
| Kaayaan operasi | - 20 ° C ~ + 60 ° C / 20% ka 80% rh | ||
| Kaayaan panyimpen | - 40 ° C ~ + 65 ° C / 20% ka 95% rh | ||
| Dimensi (l * w * h) | Perkiraan. 318mm * 200mm * 200mm | Perkiraan. 289mm * 183mm * 183mm | |
| Beurat | Perkiraan. 3.75kg | Perkiraan. 3.6kg | |
