640x50 Modul Konfor Wallal Termal sareng 30 ~ 180mm (30 ~ 120mm)
|
Model |
SG - TCM06n2 -M30180 |
SG - TCM06n2 -M30120 |
|
|
Sensikat |
Sensor gambar |
Microol Micox |
|
|
Resolusi |
640 × 512 |
||
|
Tingkat pigura |
50Hz |
||
|
Puncak piksel |
12μm |
||
|
Rentang spéktral |
8 ~ 14μm |
||
|
Jard |
≤40mk @ 25 ° C, f # 1.0 |
||
|
Lénsa |
Palapis |
Dlc |
|
|
Panjang fokus |
30 ~ 180mm |
30 ~ 120mm |
|
|
Jinis lénsa |
Disodok |
Disodok |
|
|
Zoom Optik |
6x |
4x |
|
|
Zoom Zoom |
8x |
8x |
|
|
F |
F1.0 ~ F1.4 |
F1.0 ~ F1.4 |
|
|
Fov |
14.59 ° × 11,69 ° ~ 2,44 ° × 1,96 ° |
14,59 ° × 11,69 ° ~ 3.67 ° × 2,93 ° |
|
|
Liwat saurang |
Komprisi |
H.265 / H.264 / H.264h / H.264b / Mjpeg |
|
|
Komprési audio |
Aac / Mp2l2 |
||
|
Snapshot |
Jpeg |
||
|
Resolusi |
Aliran utama: 50fps @ (1280 × 1024, 1280 × 720, 704 × 504 × 480 × 480 × 480 × 480 × 480 × 480 × 480. |
||
|
Ditunjuk pidéo |
4kbps ~ 65Mbps |
||
|
Aralkeun |
Protokol jaringan |
IPv4, IP UP, httpP, HTTPS, TCP, UDP, pasisop, PPMP, FPS, BRMP, DTPS, RTMP |
|
|
Api |
Onvif, HTTP API, SDK, GB28181 |
||
|
Kaamanan |
Obéntikasi pangguna, ip / seraring anu disaring, enkripsi https, IEEE 802.1x |
||
|
Browser wéb |
Ie, tepi, Firefox, Chrome |
||
|
Pangguna |
Nepi ka 20 pangguna, 2 tingkat: Administrator, pangguna |
||
|
Neundeun |
Kartu SD / SDHC / SDXC (dugi ka 1TB) neundeun ujung, FTP, NAS |
||
|
Anesir |
Dukungan |
||
|
Intelijen |
Perlindungan perimeter |
Tripwire, deteksi pager cross, intrusi |
|
|
Analisis kabiasaan |
Objék anu ditinggalkeun, Objék Dibagi, gancang - gerak, deteksi riungan, deteksi |
||
|
Acara |
Deteksi gerak, intervelon video, pamandangan parobahan, deteksi audio, jaringan anu ditetepkeun, konflik Cak Bumi |
||
|
Deteksi seuneu |
Dukungan |
||
|
Intervarface |
Ethernet |
4PIN Ethrovetch Ethernet, 10m / 100m diri - Adaption |
|
|
Alarm di / kaluar |
1/1 |
||
|
Audio dina / kaluar |
1/1 |
||
|
Antarmuka kontrol |
1x Ttl 3.3v (Propokol Visca), 1x Rs485 (Pelco Protocol) (TTL 3.3v opsional) |
||
|
Fungsi output video |
Jaringan sareng cvbs |
||
|
Warna pseudo |
Hot panas, panas hideung, fusion, beusi beureum, sareng sajaba 20 pilihan |
||
|
Modeu Pusun |
Otomatis / manual / salah sahiji pit |
||
|
Modeu FFC |
Otomatis / Manual |
||
|
Setting gambar |
Tangan, kontras, seukeutna, sareng panur sora samentawis |
||
|
OsD |
Dukungan |
||
|
Fland |
Dukungan |
||
|
Eunteung |
Dukungan |
||
|
Sasayogian tanaga |
DC 12V, 1A |
||
|
Konsumsi kakuatan has |
2.5w |
||
|
Pengulasi Power |
7.3w |
7.1w |
|
|
Kaayaan operasi |
- 30 ° C ~ + 60 ° C / 20% ka 80% rh |
||
|
Kaayaan panyimpen |
- 40 ° C ~ + 70 ° C / 20% ka 95% rh |
||
|
Tingkat panyalindungan lensa 1st |
Ip67 |
||
|

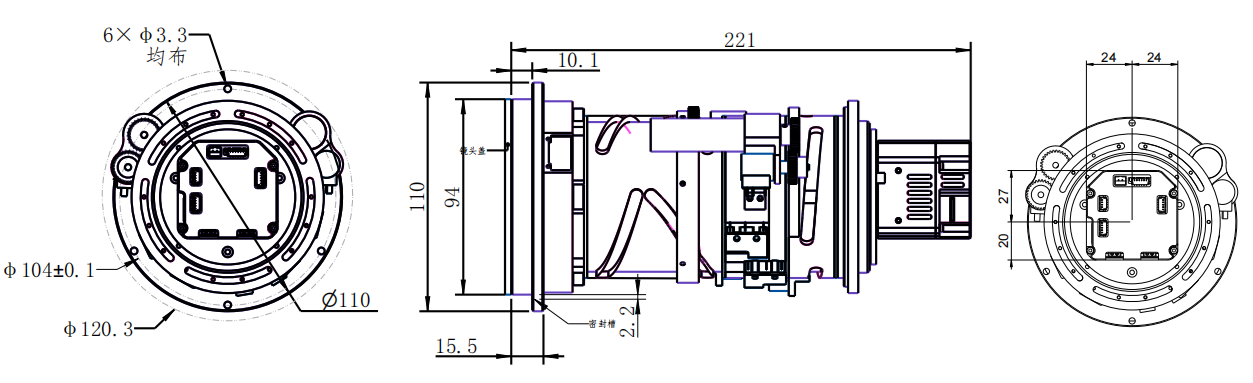

Dimensi (l * w * h) |
Φ155 * 295mm |
Φ110 * 221mm (flange) Φ120 * 221mm (max. Proyék) |
|
|
Beurat |
Perkiraan. 3.2kg (kalebet lensa cap) |
Perkiraan. 1.72kg (kalebet lenén top) |
|
Jarakna
Targét: Ukuran manusa nyaéta 1.8M × 0. 0.5m (Ukuran Kritis nyaéta 0.75m), ukuran kendaraan mangrupikeun 1.4M × 4,0m); Ukuran seuneu mangrupikeun 0.13m × 0.13m (ukuran kritis 0,13m).
Detkusi tarapan, pangakuan sareng jarak sareng jarak idisftif diitung numutkeun kriteria Johnson.
Jarak anu disarankeun deteksi, pangakuan sareng idéntifikasi sapertos kieu:
|
Lénsa |
Dédék |
Répadigei |
Idéntify |
||||||
|
Kendaraan |
Manusa |
Seuneu |
Kendaraan |
Manusa |
Seuneu |
Kendaraan |
Manusa |
Seuneu |
|
|
30mm |
3833m (12575ft) |
1250m (4101ft) |
217m (712ft) |
958m (3143ft) |
313m (1027ft) |
54m (177ft) |
479m (1572ft) |
156m (512ft) |
27m (89ft) |
|
120mm |
15333m (50305ft) |
5000m (16404ft) |
607M (1991ft) |
3833m (12575ft) |
1250m (4101ft) |
152m (499ft) |
1917m (6289ft) |
625m (2021ft) |
76m (249ft) |
|
180mm |
23000m (75459ft) |
7500m (24606FT) |
910m (2985ft) |
5750m (1886ft) |
1875M (6152ft) |
227m (744ft) |
2875m (9432ft) |
938m (3077ft) |
113m (371ft) |
