12um 640x512 USB (CVBS / Kacing - C / Mipi) Kaluaran anu komputasi
|
Nomer model |
Sg - vtm06u (c, m) 2 - x |
SG - VTM03U (c, m) 2 - x |
|
Modul termal |
||
|
Sensor gambar |
VOX KOMUNITAS PLEAL TRANE |
|
|
Max. Resolusi |
640 × 512 |
|
|
Tingkat pigura |
≤50hz |
|
|
Interval piksel |
12μm |
|
|
Téspon réspon |
8μm ka 14μm |
|
|
Jard |
≤ 50MK (@ 300k), F # = 1.0 |
|
|
Lensa (panjang fokus) |
9.1 / 13/19/25 / 35mm |
9.1 / 13/2 / 35mm |
|
F Nomer |
F1.0 |
F1.0 |
|
Widang panempoan (H × v) |
45.8 ° × 37.3 ° / 32,9.9 ° × 26.6 ° / 22.6 ° E0 °. 17.3 ° × 13,2 ° / 12.5 ° × 10.0 ° |
28.7 ° × 21.7 ° / 20.1.1 ° × 15.1 ° / 10.5 ° ×9 7.9 ° / 7,5 ° × 5.6 ° |
|
Tampilan gambar |
||
|
Zoom Zoom |
1 ~ 8x |
|
|
Koreksi gambar |
Koréksi shutter |
|
|
Caang & kontras |
Otomatis |
|
|
Paletes warna |
Panas bodas, panas hideung, beusi beureum, katumbiri |
|
|
Prosés gambar |
Non - koréksi seragam, panyaring digital pikeun pangurangan sora, penelitian digital |
|
|
Liwat saurang |
||
|
Format video |
USB kaluaran sacara standar, CVBS / Jenis - C / Mipi pikeun Pilihan |
|
|
Antarmuka Hardware |
9pin USB atanapi CVBS, 20pin mipi |
|
|
Umum |
||
|
Kakuatan |
DC 4.5v ~ 18V (overnoltage, undervoltage, perlindungan input) |
|
|
Konsumsi |
≤1.2w |
|
|
Suhu gawe |
- 20 ° C ~ 55 ° C |
|
|
Kerulan neundeun |
- 45 ° C ~ 60 ° C |
|
|
Asor |
5 ~ 95%, sanés - condensing |
|
|
Ngageter - tahan |
6.06g, geter acak, sadaya arah axial |
|
|
Kaget - tahan |
Balik deui TeThooth, 200g / 4ms, 3 - Axis 6 - cara |
|
|

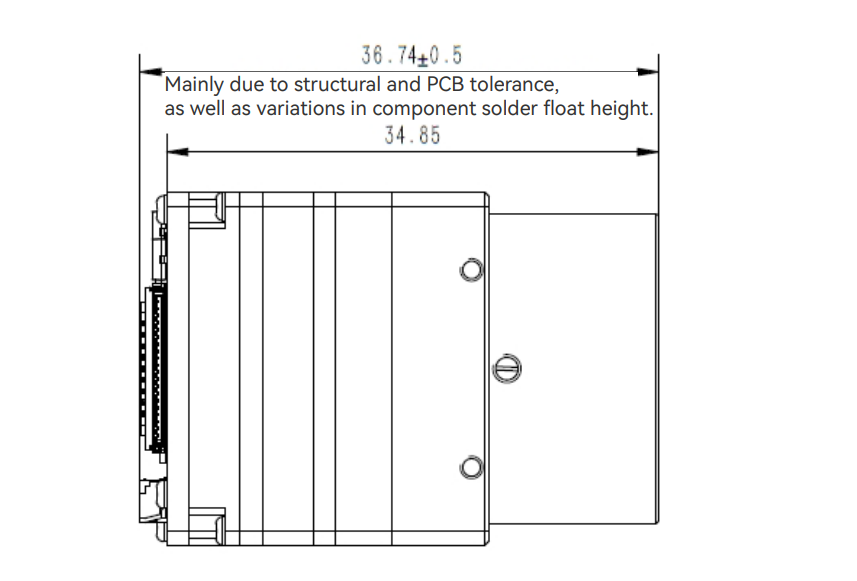

Diménsi (mm) |
38.14 * 25 * 25mm (39.55 * 25 * 25mm pikeun 9.1mm Lanji) |
|
|
Beurat |
≤42g ± 3G (≤38g ± 3g kanggo lensa 9.1MM) |
|
