1280x10x104 Modul Waspada sareng 30 ~ 180mm (30 ~ 120mm)
|
Model |
SG - TCM06n2 -M30180 |
SG - TCM06n2 -M30120 |
|
|
Sensikat |
Sensor gambar |
Microol Micox |
|
|
Resolusi |
1280 × 1024 |
||
|
Tingkat pigura |
50Hz |
||
|
Puncak piksel |
12μm |
||
|
Rentang spéktral |
8 ~ 14μm |
||
|
Jard |
≤35MK @ 25 ° C, f # 1.0 |
||
|
Lénsa |
Palapis |
Dlc |
|
|
Panjang fokus |
30 ~ 180mm |
30 ~ 120mm |
|
|
Jinis lénsa |
Disodok |
Disodok |
|
|
Zoom Optik |
6x |
4x |
|
|
Zoom Zoom |
8x |
8x |
|
|
F |
F1.0 ~ F1.4 |
F1.0 ~ F1.4 |
|
|
Fov |
28.72 ° × 23.15 ° ~ 4.89 ° × 3,91 ° |
28.72 ° × 23.15 ° ~ 7.32 ° × × 586 ° |
|
|
Liwat saurang |
Komprisi |
H.265 / H.264 / H.264h / H.264b / Mjpeg |
|
|
Komprési audio |
Aac / Mp2l2 |
||
|
Snapshot |
Jpeg |
||
|
Resolusi |
Aliran utama: 50fps @ (1280 × 1024, 1280 × 720, 704 × 504 × 480 × 480 × 480 × 480 × 480 × 480 × 480. |
||
|
Ditunjuk pidéo |
4kbps ~ 40mbps |
||
|
Aralkeun |
Protokol jaringan |
IPv4, IP UP, httpP, HTTPS, TCP, UDP, pasisop, PPMP, FPS, BRMP, DTPS, RTMP |
|
|
Api |
Onvif, HTTP API, SDK, GB28181 |
||
|
Kaamanan |
Obéntikasi pangguna, ip / seraring anu disaring, enkripsi https, IEEE 802.1x |
||
|
Browser wéb |
Ie, tepi, Firefox, Chrome |
||
|
Pangguna |
Nepi ka 20 pangguna, 2 tingkat: Administrator, pangguna |
||
|
Neundeun |
Kartu SD / SDHC / SDXC (dugi ka 1TB) neundeun ujung, FTP, NAS |
||
|
Anesir |
Dukungan |
||
|
Intelijen |
Perlindungan perimeter |
Tripwire, deteksi pager cross, intrusi |
|
|
Analisis kabiasaan |
Objék anu ditinggalkeun, Objék Dibagi, gancang - gerak, deteksi riungan, deteksi |
||
|
Acara |
Deteksi gerak, intervelon video, pamandangan parobahan, deteksi audio, jaringan anu ditetepkeun, konflik Cak Bumi |
||
|
Deteksi seuneu |
Dukungan |
||
|
Intervarface |
Ethernet |
4PIN Ethrovetch Ethernet, 10m / 100m diri - Adaption |
|
|
Alarm di / kaluar |
1/1 |
||
|
Audio dina / kaluar |
1/1 |
||
|
Antarmuka kontrol |
1x Ttl 3.3v (Propokol Visca), 1x Rs485 (Pelco Protocol) (TTL 3.3v opsional) |
||
|
Fungsi output video |
Aralkeun |
||
|
Warna pseudo |
Hot panas, panas hideung, fusion, beusi beureum, sareng sajaba 20 pilihan |
||
|
Modeu Pusun |
Otomatis / manual / salah sahiji pit |
||
|
Modeu FFC |
Otomatis / Manual |
||
|
Setting gambar |
Tangan, kontras, seukeutna, sareng panur sora samentawis |
||
|
Éf |
Dukungan |
||
|
OsD |
Dukungan |
||
|
Fland |
Dukungan |
||
|
Eunteung |
Dukungan |
||
|
Sasayogian tanaga |
DC 12V, 1A |
||
|
Konsumsi kakuatan has |
3.8w |
||
|
Pengulasi Power |
7.3w |
7.1w |
|
|
Kaayaan operasi |
- 30 ° C ~ + 60 ° C / 20% ka 80% rh |
||
|
Kaayaan panyimpen |
- 40 ° C ~ + 70 ° C / 20% ka 95% rh |
||
|
Tingkat panyalindungan lensa 1st |
Ip67 |
||
|

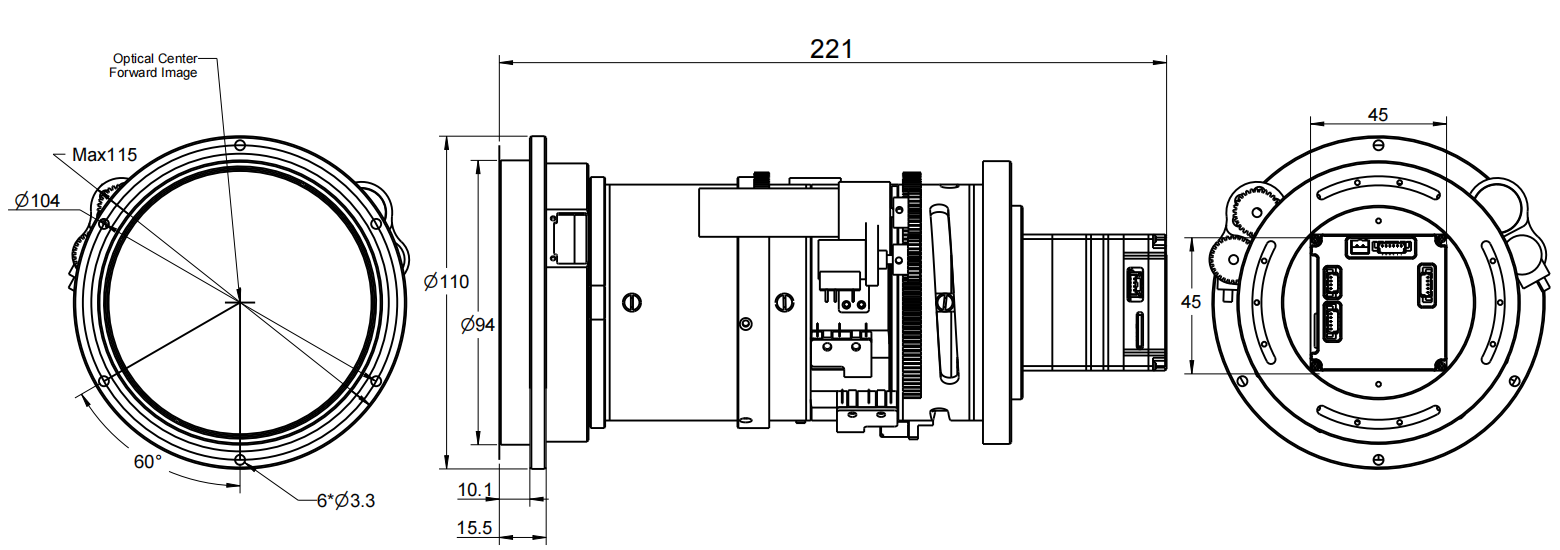

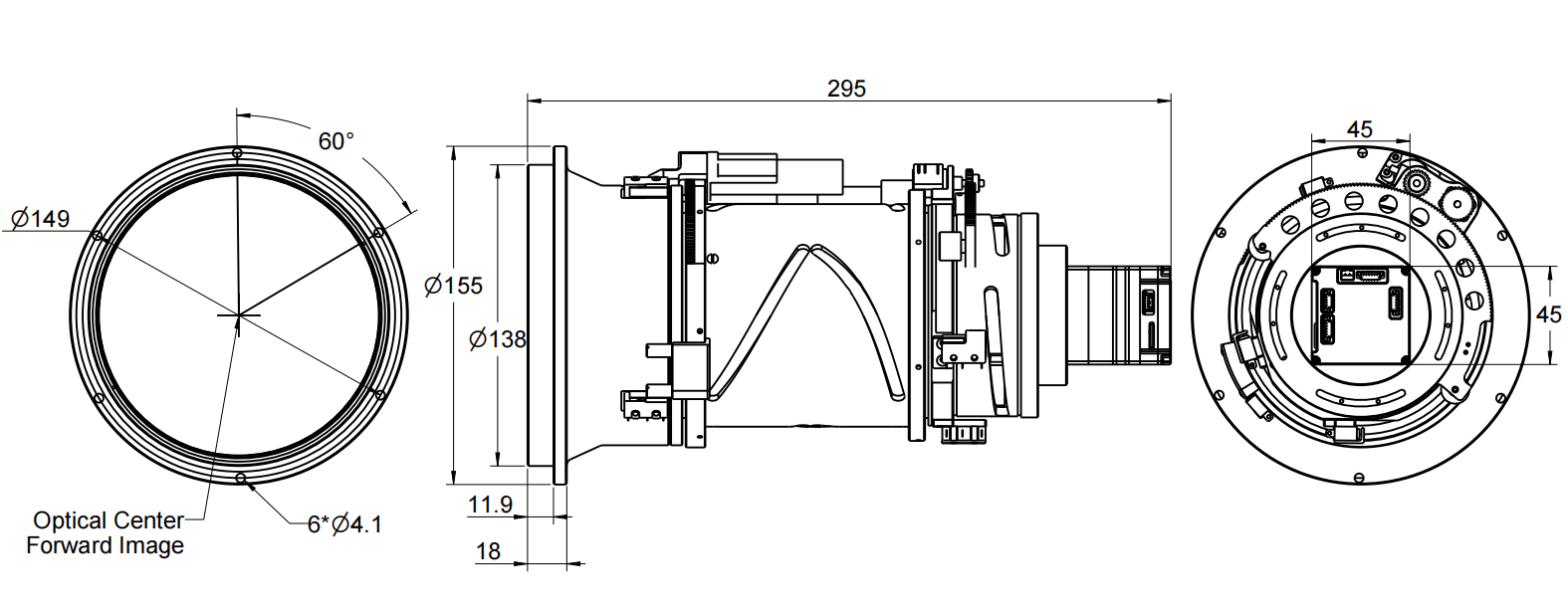

Dimensi (l * w * h) |
Φ155 * 295mm |
Φ110 * 221mm (flange) Φ120 * 221mm (max. Proyék) |
|
|
Beurat |
Perkiraan. 3.2kg (kalebet lensa cap) |
Perkiraan. 1.69kg (kalebet lensa cap) |
|
