2mp 10x Zoom HDTVI, HDCVI, AHD, CVBS 4 Dina 1 Modul Lambang Kaluaran
|
Model |
Sg - zcm2010A |
|
|
Sensikat |
Sensor gambar |
1 / 2.8 "Sony IMX307 CMO |
|
Piksels |
Perkiraan. 2.13 Megapixel |
|
|
Lénsa |
Panjang fokus |
4.7mm ~ 47mm, 1x Optical Zoom |
|
Alinur |
F1.6 ~ F2.5 |
|
|
Lapangan pandangan |
H: 61.5 ° ~ 7.1 ° |
|
|
Jarak pokus caket |
100 ~ 1500mm (lebar ~ tele) |
|
|
Laju zum |
Perkiraan. 3s (optikal lebar ~ tele) |
|
|
Liwat saurang |
Format |
HD - TVI, HDCVI, AMD, CVBS 4 Dina 1 (Pelantatan OSD) |
|
Kaluaran |
Ivp - Pisi Composite |
|
|
Resolusi |
TVI / CVI / AMD: 25 / 30FPS @ 2MP (1920 × 1080) CBV: 700TVL |
|
|
Menu OSD |
Dina / pareum (11 * 20 karakter) |
|
|
Panerangan minimum |
Warna: 0,01lix / F1.6; B / w: 0.001lix / F1.6 |
|
|
Beurang / peuting |
ICR (Otomatis, warna, hideung, éksternal) |
|
|
Rasio s / n |
≥44DB |
|
|
Daya tarik 2d |
Dukungan |
|
|
Pangurangan bising 3D |
Dukungan (luhur / tengah / rendah) |
|
|
Modeu Pusun |
Otomatis, Manual, Semi otomatis, |
|
|
Modeu Expost |
Auto, manual |
|
|
Laju jepret |
Otomatis, 1/50 (1/60) ~ 1 / 100,000 |
|
|
Laun laun |
X2 |
|
|
Kasaimbangan bodas |
Otomatis, Indoor, luar, Otomatis, salah sahiji push |
|
|
Su Anggur |
Dina / pareum |
|
|
Keuntungan otomatis |
Auto, manual |
|
|
Tapik privasi |
Dina / pareum, max. 8 daerah |
|
|
Ngartikeun |
Dilereskeun |
|
|
Kontras |
Dilereskeun |
|
|
Heueur defografi |
Dukungan |
|
|
Eunteung |
Dina / pareum, muterkeun, flip |
|
|
Gambar freeze |
Dina / pareum |
|
|
Intervarface |
6pin, 2PIN NEGARA NEGARA NEGARA, DENGAN PUTRA |
|
|
Protokol komunikasi |
Sony Visca, Pelca D, Utc (9.6kbps 10bit) |
|
|
Kaayaan operasi |
- 30 ° C ~ + 60 ° C / 20% ka 80% rh |
|
|
Kaayaan panyimpen |
- 40 ° C ~ + 70 ° C / 20% ka 95% rh |
|
|
Sasayogian tanaga |
DC 12V / 90MA ± 6MA (DC kisaran: 9 ~ 16V) |
|
|
Konsumsi |
Max. 4w |
|
|

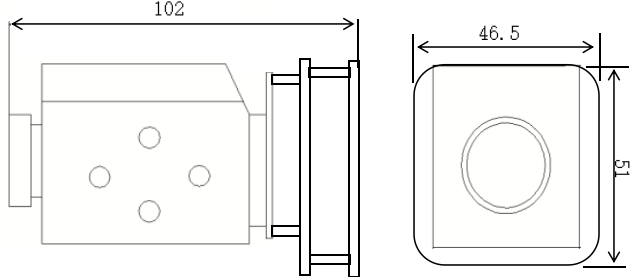

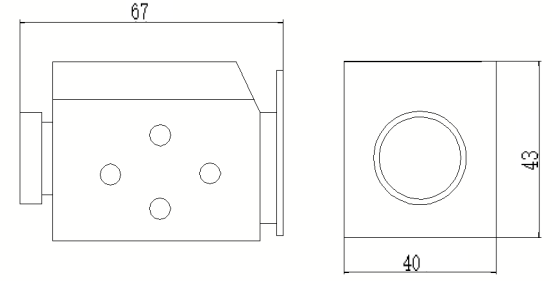

Dimensi (l * w * h) |
67mm * 40mm * 43mm (102mm * 46.5mm * 51mm sareng papan buntut) |
|
|
Beurat |
150g (168g sareng papan buntut) |
|
