4K / 12MP 3.5x zum NDAA Network Kamera Module
Modél | SG-ZCM8003NKL | ||||
Sénsor | Sénsor Gambar | 1/2.3” Sony Starvis scan progresif CMOS | |||
| Piksel éféktif | Kira-kira.12.93Megapiksel | ||||
Lensa | Panjang fokus | 3,85 mm~13.4mm, 3.5x Optical Zoom | |||
| aperture | F2.4 ~ F5.03 | ||||
| Médan Témbongkeun | H: 82°~25° | ||||
| Tutup Jarak Fokus | 1m~2m (lebar~Tele) | ||||
| Zoom Speed | Kira-kira.2.5s (Optical Wide~Tele) | ||||
| Jarak DORI(manusa) | Deteksi | Nitenan | mikawanoh | Ngidentipikasi | |
| 346m | 137m | 69m | 34m | ||
Video | Komprési | H.265/H.264/H.264H/MJPEG | |||
| Kamampuhan Streaming | 3 aliran | ||||
| Resolusi | 50Hz: 10fps@12MP(4000×3000),25fps@8MP(3840×2160)60Hz: 10fps@12MP(4000×3000),30fps@8MP(3840×2160) | ||||
| Laju Bit Video | 32kbps~16Mbps | ||||
| Audio | AAC / MP2L2 | ||||
Jaringan | Panyimpenan | Kartu TF (256 GB), FTP, NAS | |||
| JaringanProtokol | Onvif, HTTP, HTTPS, IPv4, IPv6, RTSP, DDNS, RTP, TCP, UDP | ||||
| Multicast | Sngadukung | ||||
| Kajadian Umum | Motion, Tamper, Kartu SD, Jaringan | ||||
| IVS | Tripwire, Deteksi Pagar Palang, Intrusion, Objék Ditinggalkeun, Gancang-Pindah, Detéksi Parkir, Estimasi Ngumpulkeun Riungan, Objék Leungit, Detéksi Loitering. | ||||
| Babandingan S/N | ≥55dB (AGC Pareum,Beurat ON) | ||||
| Pencahayaan Minimum | Warna:0.5Lux/F2.4; | ||||
| NoiseRatikan | 2D/3D | ||||
| Mode Paparan | Otomatis, Prioritas Aperture, Prioritas Jepret, Prioritas Gain,Manual | ||||
| Kompensasi Paparan | Ngarojong | ||||
| Laju jepret | 1/3~1/30000s | ||||
| BLC | Ngarojong | ||||
| HLC | Ngarojong | ||||
| WDR | Ngarojong | ||||
| Kasaimbangan Bodas | Otomatis, Manual, Indoor, Luar,ATW, lampu natrium,Jalan lamp,Alami,Hiji Teken | ||||
| Beurang/Peuting | Listrik, ICR (Otomatis/Manual) | ||||
| Modeu pokus | Otomatis, Manual, Semi Otomatis, Gancang Otomatis, Gancang Semi Otomatis, Hiji PushAF | ||||
| Éléktronik Defog | Ngarojong | ||||
| Balikkeun | Ngarojong | ||||
| EIS | Ngarojong | ||||
| Ngazum Digital | 16x | ||||
| Kontrol éksternal | TTL | ||||
| Panganteur | 4pin port Ethernet, 6pin Power& port UART, 5pin port Audio. | ||||
| KomunikasiProtokol | SONY VISCA, Pleco D/P | ||||
| Kaayaan Operasi | (-10°C~+60°C/20% nuju 80%RH) | ||||
| Kaayaan Panyimpenan | (-20°C~+70°C/20%nuju 95%RH） | ||||
| Sasayogian tanaga | DC 12V | ||||
| Konsumsi Daya | kakuatan statik: 3.5W,kakuatan olahraga: 4.5W | ||||

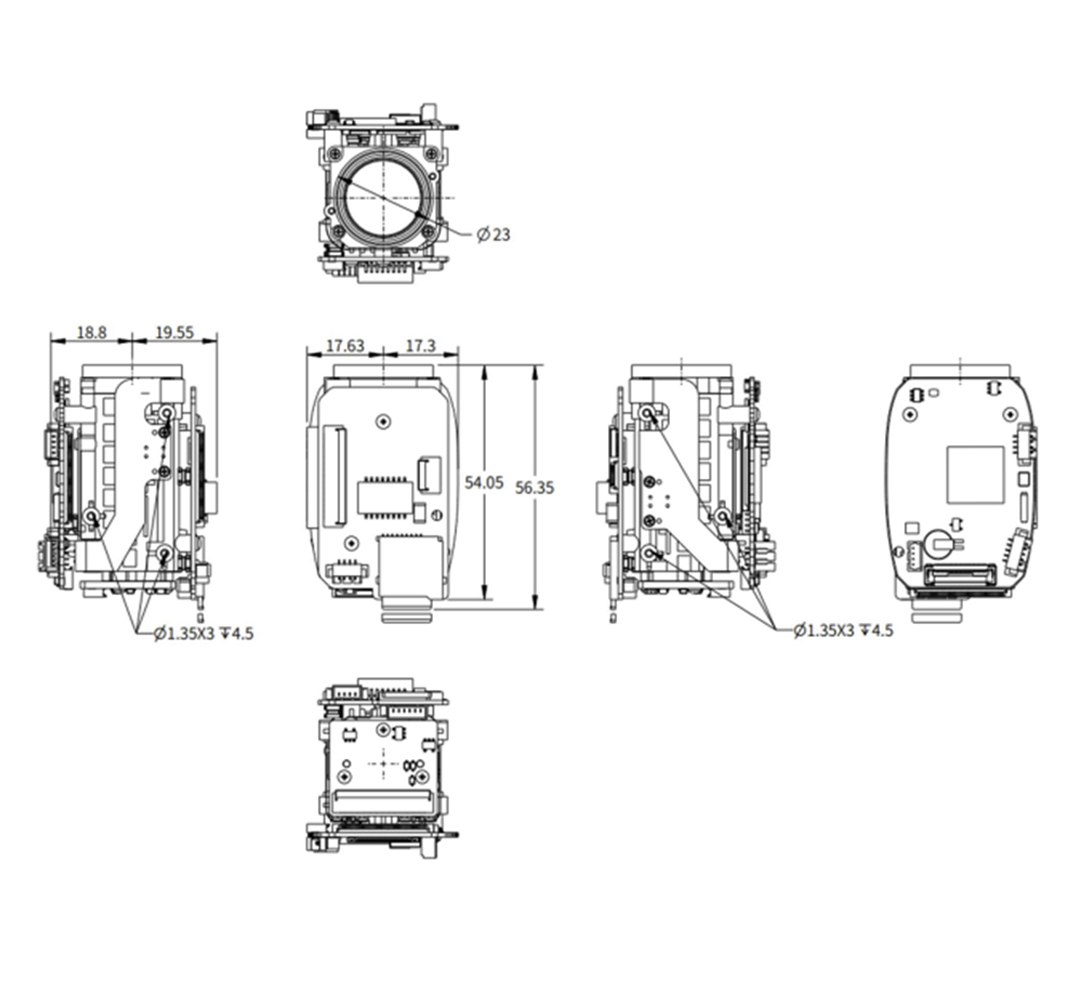

| Ukuran (L*W*H) | 56mm*35mm*39mm | ||||
| Beurat | 55g | ||||
