4mp 60x AI ISP dumasar kana TREFRA TRANTAR TRANTRACH sareng MIPI PRESTIP (OIS) Modul
|
Model |
Sg - zcm4060nmi - O |
Sg - zcm4060nmi - O2 |
|||
|
Sensikat |
Sensor gambar |
1 / 1,8 "Sony ngabimbing Scan Scan |
|||
|
Piksels |
Perkiraan. 4.17 Megapixel |
||||
|
Lénsa |
Panjang fokus |
20mm ~ 1200mm, 60x operator optikal |
|||
|
Alinur |
F2.92 ~ F11.37 |
||||
|
Lapangan pandangan |
H: 22.06 ° ~ 0.37 °, V: 12.51 ° ~ 0.21 °, D: 25.21 ° ~ |
||||
|
Jarak pokus caket |
1m ~ 50m (lebar ~ tele) |
2m ~ 50m (lebar ~ tele) |
|||
|
Laju zum |
<10s (optik lega ~ tele) |
||||
|
Jarak DORI (Manusa) |
Ngadeteksi |
Niténan |
Ngaku |
Ngaidentipikasi |
|
|
16,650m |
6,607m |
3,330m |
1,665m |
||
|
Liwat saurang |
Komprisi |
H.265 / H.264b / H.264m / H.264.h / MJPGG |
|||
|
Kamampuan streaming |
3 aliran |
||||
|
Resolusi |
Aliran utama: 50 / 60fps @ 2688 × 1520; 50 / 60fps @ 1920 × 1080; 50 / 60fps @ 1280 × 720 Sub stream1: 50 / 60fps @ 704 × 576; 50 / 60fps @ 352 × 288; Sub NWOR2: 50 / 60fPS @ 1920 × 1280; 50 / 60fps @ 1280 × 720; 50 / 60fps @ 704 × 576 |
||||
|
Audio |
AAC (8 / 16khz) / Mp2l2 (16khz) |
||||
|
Mipi Liwat saurang |
50hz: 50fps @ 4mp (2688 × 1520) 60hz: 60fps @ 4mp (2688 × 1520) |
||||
|
Aralkeun |
Protokol jaringan |
IPv4, IP UP, httpP, HTTPS, TCP, UDP, pasisop, PPMP, FPS, BRMP, DTPS, RTMP |
|||
|
Api |
Onvif, HTTP API, SDK, GB28181 |
||||
|
Browser wéb |
Ie, tepi, Firefox, Chrome |
||||
|
Pangguna |
Nepi ka 20 pangguna, 2 tingkat: Administrator, pangguna |
||||
|
Neundeun |
Kartu SD / SDHC / SDXC (dugi ka 1TB) neundeun ujung, FTP, NAS |
||||
|
Anesir |
Dukungan |
||||
|
Pamutahiran firmware |
Ngan ukur tiasa ningkatkeun firmware via palabuhan jaringan. |
||||
|
Kajadian umum |
Gerak, tamper, kartu SD, jaringan |
||||
|
Ivs |
RbanWia, deteksi Petrési Cocal, intrusi, obusi anu ditinggalkeun, gancang - Pindah, Deteksi Paraman, Gencatan Tangkal, Game Numpori. |
||||
|
Bédana target |
Manusa / kendaraan |
||||
|
Rasio s / n |
≥55dB |
||||
|
Panerangan minimum |
Warna: 0,05lux / F2.92; B / w: 0.0055lix / F2.92 |
||||
|
Réduksi bising |
2d / 3d / pangurangan sora AI |
||||
|
Modeu Expost |
Auto, prioritas aperture, prajurit prioritas, kauntungan prioritas, manual |
||||
|
Pelantikan |
Dukungan |
||||
|
Laju jepret |
1/1 ~ 1 / 30000s |
||||
|
Su Anggur |
Dukungan |
||||
|
Hlc |
Dukungan |
||||
|
Warr |
Dukungan |
||||
|
Kasaimbangan bodas |
Otomatis, Manual, indoor, luar, ATW, lampu nada, lampu jalan, hiji push |
||||
|
Beurang / wengi |
ICR (Otomatis / Manual) |
||||
|
Modeu Pusun |
Otomatis, Manual, Semi otomatis, salah sahiji pit |
||||
|
Defog éléktronik |
Dukungan |
||||
|
Defog optik |
Dukungan, 750NM ~ Saluran 1100nm mangrupikeun defog optik |
||||
|
Panir panas |
Dukungan |
||||
|
Fland |
Dukungan |
||||
|
Éf |
Dukungan |
||||
|
OIS (Gambar optik |
N / a |
Dukungan (on / pareum) |
|||
|
Zoom Zoom |
16X |
||||
|
Kontrol éksternal |
2x ttl; Cocog sareng Sony Visca sareng Pelco Protocol |
||||
|
Intervarface |
4pin palabuhan Ethernet, Power 6pin & Uart Port, palabuhan audio 5pin, 30pin MIPI |
||||
|
Protokol komunikasi |
Sony Visca, Pelo D / P |
||||
|
Kaayaan operasi |
- 30 ° C ~ + 60 ° C / 20% ka 80% rh |
||||
|
Kaayaan panyimpen |
- 40 ° C ~ + 70 ° C / 20% ka 95% rh |
||||
|
Sasayogian tanaga |
Dc 12v |
||||
|
Konsumsi |
Kakuatan statik: 5w, kakuatan olahraga: 10W |
||||
|

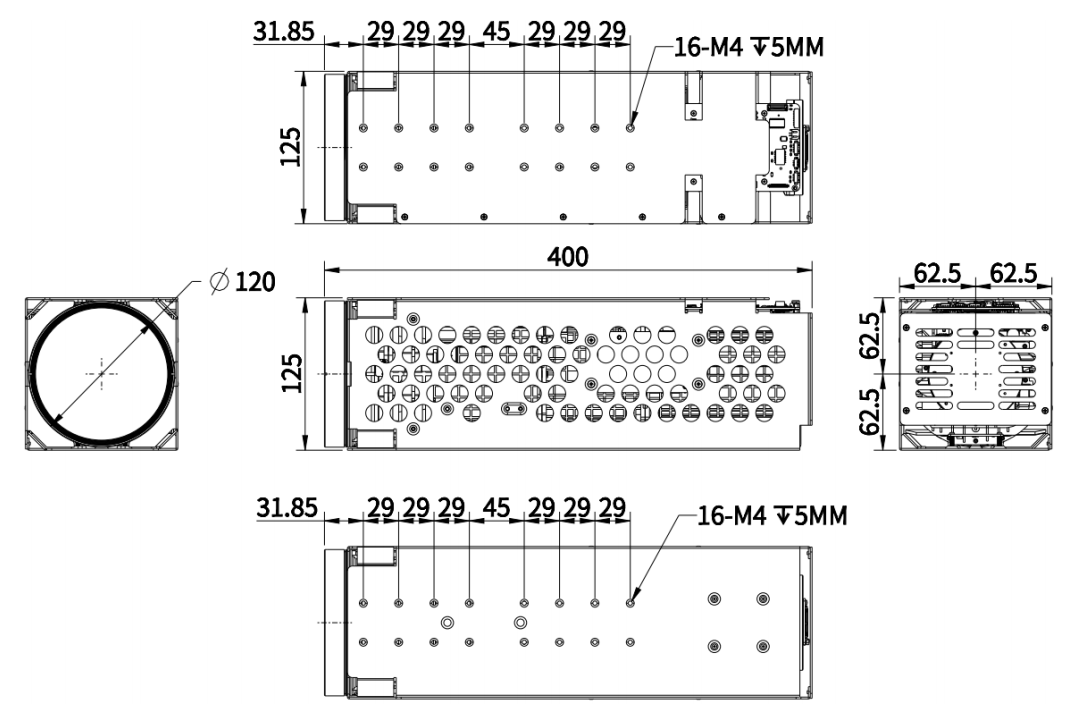

Dimensi (l * w * h) |
400mm * 125mm * 125mm |
||||
|
Beurat |
Perkiraan. 5kg |
||||
