8mp / 4k 10x Star Freach Star World Jaros NDAV
|
Model |
SgUCm8010nkl |
||||
|
Sensikat |
Sensor gambar |
1/2 "8 "SPACT Scan Scan Scan |
|||
|
Piksels |
Perkiraan. 8,46 megapsixel |
||||
|
Lénsa |
Panjang fokus |
4.8mm ~ 48mm, 1x Optical Zoom |
|||
|
Alinur |
F1.7 ~ f3.2 |
||||
|
Lapangan pandangan |
H: 60.2°~6.6°, V: 36.1°~3.7°, D: 67.3°~7.6° |
||||
|
Jarak pokus caket |
1m ~ 2m (lebar ~ tele) |
||||
|
Laju zum |
Perkiraan. 3s (optikal lebar ~ tele) |
||||
|
Jarak DORI (Manusa) |
Ngadeteksi |
Niténan |
Ngaku |
Ngaidentipikasi |
|
|
1,326m |
526m |
265m |
133m |
||
|
Liwat saurang |
Komprisi |
H.265 / H.264 / H.264h / MJPEG |
|||
|
Kamampuan streaming |
3 aliran |
||||
|
Resolusi |
Aliran utama: 25 / 30fps @ 3840 × 2160; 25 / 30fps @ 1920 × 1080 Sub - Aliran1: 25 / 30fps @ 704 × 576; 25 / 30fps @ 640 × 480 Sub - Aliran2: 25 / 30fps @ 1280 × 720; 25 / 30fps @ 704 × 576 |
||||
|
Ditunjuk pidéo |
32kbps ~ 16Mbps |
||||
|
Audio |
Aac / Mp2l2 |
||||
|
Aralkeun |
Protokol jaringan |
IPv4, IP UP, httpP, HTTPS, TCP, UDP, pasisop, PPMP, FPS, BRMP, DTPS, RTMP |
|||
|
Api |
Onvif, HTTP API, SDK |
||||
|
Browser wéb |
Ie, tepi, Firefox, Chrome |
||||
|
Pangguna |
Nepi ka 20 pangguna, 2 tingkat: Administrator, pangguna |
||||
|
Neundeun |
Kartu TF, dugi ka 1TB |
||||
|
Anesir |
Dukungan |
||||
|
Nerihkeun |
Dukungan |
||||
|
Kajadian umum |
Gerak, tamper, kartu SD, jaringan |
||||
|
Fungsi |
Trek pinter, snapshot, dirékam pidéo, log penerbangan, GPS Inpo Insload, jsb. |
||||
|
Rasio s / n |
≥55db (agc off, beurat) |
||||
|
Panerangan minimum |
Warna: 0,01lix / F1.7; B / w: 0.001lix / F1.7 |
||||
|
Réduksi bising |
2d / 3D |
||||
|
Modeu Expost |
Auto, prioritas aperture, prajurit prioritas, kauntungan prioritas, manual |
||||
|
Pelantikan |
Dukungan |
||||
|
Laju jepret |
1/1 ~ 1 / 30000s |
||||
|
Su Anggur |
Dukungan |
||||
|
Hlc |
Dukungan |
||||
|
Warr |
Dukungan |
||||
|
Kasaimbangan bodas |
Otomatis, Manual, indoor, luar, ATW, lampu nada, lampu jalan, hiji push |
||||
|
Beurang / wengi |
Electrical, ICR (Otomatis / manual) |
||||
|
Modeu Pusun |
Otomatis, Manual, Semi otomatis, otomatis gancang, Semo Otomatis, salah sahiji pit |
||||
|
Defog éléktronik |
Dukungan |
||||
|
Fland |
Dukungan |
||||
|
Éf |
Dukungan |
||||
|
Zoom Zoom |
16X |
||||
|
Kontrol éksternal |
TTL |
||||
|
Intervarface |
4pin palabuhan Ethernet, Power 6pin & Uart Port, palabuhan audio 3pin |
||||
|
Protokol komunikasi |
Sony Visca, Pelo D / P |
||||
|
Kaayaan operasi |
- 30 ° C ~ + 60 ° C / 20% ka 80% rh |
||||
|
Kaayaan panyimpen |
- 40 ° C ~ + 70 ° C / 20% ka 95% rh |
||||
|
Sasayogian tanaga |
Dc 12V |
||||
|
Konsumsi |
Kakuatan statik: 4.5w, kakuatan olahraga: 5.5w |
||||
|

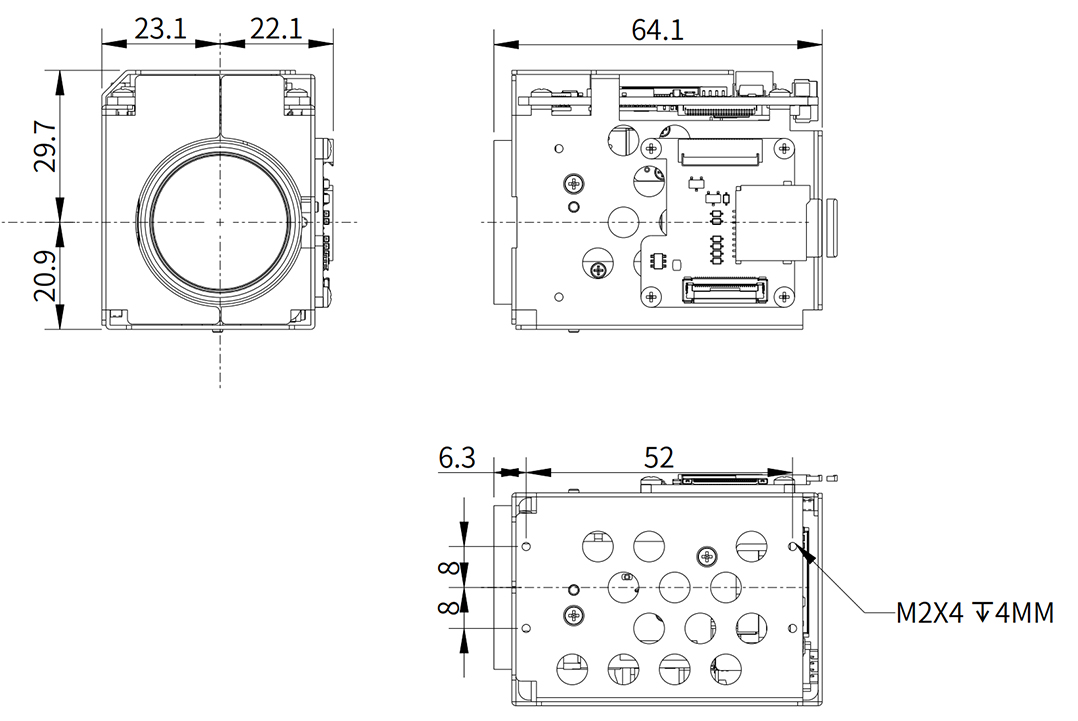

Dimensi (l * w * h) |
64.1mm * 45.2mm * 50,6mm |
||||
|
Beurat |
146g |
||||
