8MP / 4K 20x zum Starlight NDAA Network Kamera Module
Modél | SG-ZCM8020NK | ||||
Sénsor | Sénsor Gambar | 1/1,8Sony Starvis scan progresif CMOS | |||
| Piksel éféktif | Kira-kira. 8.48Megapiksel | ||||
Lensa | Panjang fokus | 6,5 mm~130mm, 20x Optical Zoom | |||
| aperture | F1.5~F4.0 | ||||
| Médan Témbongkeun | H:61.1°~3.4°, V:36,7°~1.9°,D:69.2°~3.9° | ||||
| Tutup Jarak Fokus | 0,5m~2m (lebar~Tele) | ||||
| Zoom Speed | Kira-kira.4s (Optical Wide~Tele) | ||||
| Jarak DORI(Manusa) | Deteksi | Nitenan | mikawanoh | Ngidentipikasi | |
| 1,811m | 718m | 362m | 181m | ||
Video | Komprési | H.265/H.264/H.264H/MJPEG | |||
| Kamampuhan Streaming | 3 aliran | ||||
| Resolusi | 50Hz: 25fps@8Mp(3840×2160)60Hz: 30fps@8Mp(3840×2160) | ||||
| Laju Bit Video | 32kbps~16Mbps | ||||
| Audio | AAC / MP2L2 | ||||
Jaringan | Panyimpenan | Kartu TF (1TB), FTP, NAS | |||
| JaringanProtokol | Onvif, HTTP, HTTPS, IPv4, IPv6, RTSP, DDNS, RTP, TCP, UDP | ||||
| Multicast | Sngadukung | ||||
| Kajadian Umum | Motion, Tamper, Kartu SD, Jaringan | ||||
| IVS | Tripwire, Deteksi Pagar Palang, Intrusion, Objék Ditinggalkeun, Gancang-Pindah, Detéksi Parkir, Estimasi Ngumpulkeun Riungan, Objék Leungit, Detéksi Loitering. | ||||
| Babandingan S/N | ≥55dB (AGC Pareum,Beurat ON) | ||||
| Pencahayaan Minimum | Warna:0.01Lux/F1.5;B/W:0.001Lux/F1.5 | ||||
| NoiseRatikan | 2D/3D | ||||
| Mode Paparan | Otomatis, Prioritas Aperture, Prioritas Jepret, Prioritas Gain,Manual | ||||
| Kompensasi Paparan | Ngarojong | ||||
| Laju jepret | 1/3~1/30000s | ||||
| BLC | Ngarojong | ||||
| HLC | Ngarojong | ||||
| WDR | Ngarojong | ||||
| Kasaimbangan Bodas | Otomatis, Manual, Indoor, Luar,ATW, lampu natrium,Jalan lamp,Alami,Hiji Teken | ||||
| Beurang/Peuting | Listrik, ICR (Otomatis/Manual) | ||||
| Modeu pokus | Otomatis, Manual, Semi Otomatis, Gancang Otomatis, Gancang Semi Otomatis, Hiji PushAF | ||||
| Éléktronik Defog | Ngarojong | ||||
| Balikkeun | Ngarojong | ||||
| EIS | Ngarojong | ||||
| Ngazum Digital | 16x | ||||
| Kontrol éksternal | TTL | ||||
| Panganteur | 4pin port Ethernet, 6pin Power& palabuhan UART, 3pin port Audio. | ||||
| KomunikasiProtokol | SONY VISCA, Pleco D/P | ||||
| Kaayaan Operasi | -30°C~+60°C/20% nuju 80%RH | ||||
| Kaayaan Panyimpenan | -40°C~+70°C/20%nuju 95%RH | ||||
| Sasayogian tanaga | DC 12V | ||||
| Konsumsi Daya | kakuatan statik:4,5W,kakuatan olahraga:5,5W | ||||

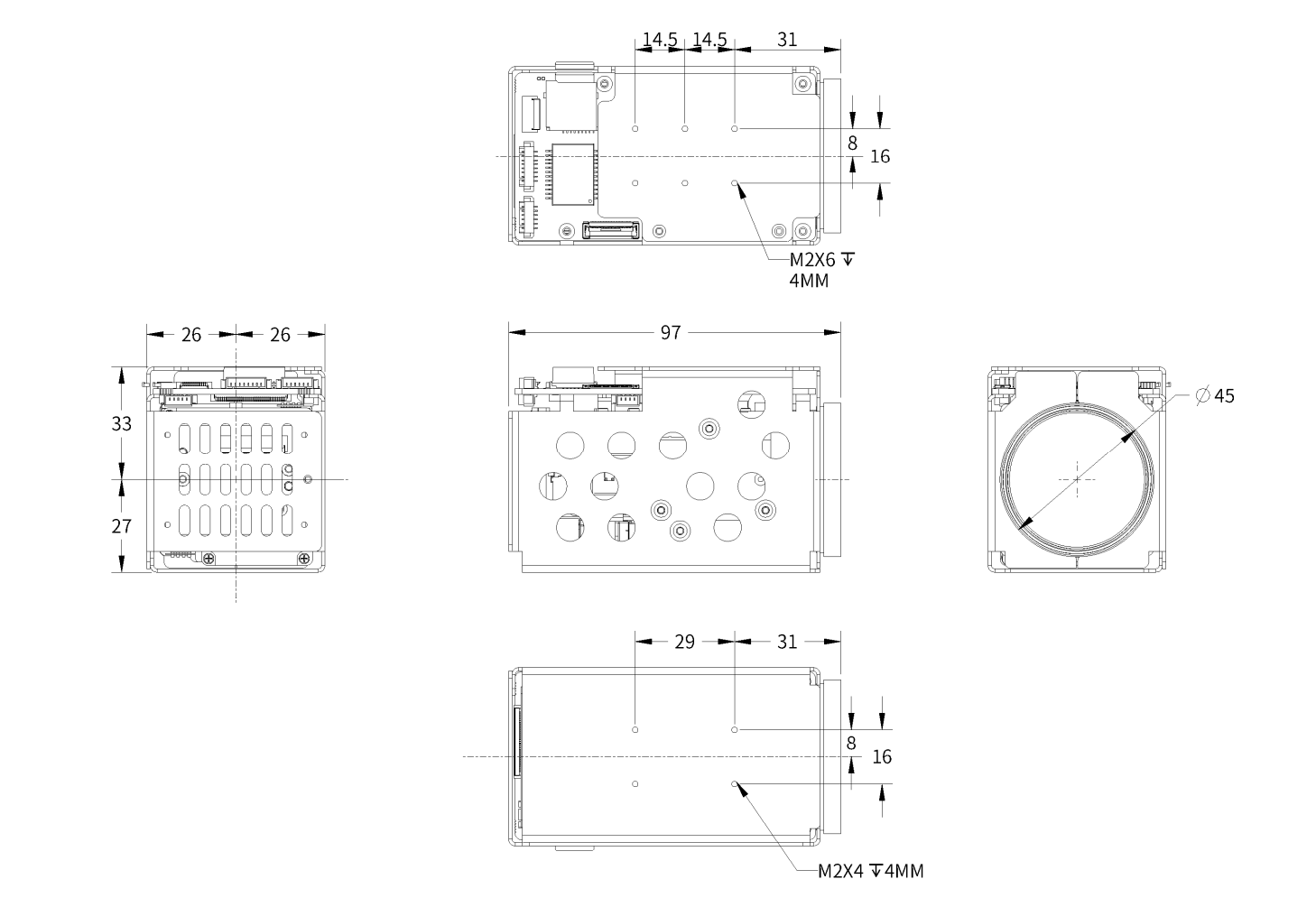

| Ukuran (L*W*H) | 97,2 mm*52,2 mm*60,3 mm | ||||
| Beurat | 330g | ||||
